E-Go Max Folding Electric Bike | 250W UK EAPC Specification | 504Wh Samsung/LG Battery | Shimano 7-Speed

Discover the E-Go Max Folding Electric Bike, a 250W pedal-assisted electric bicycle combining a practical folding frame, removable 504Wh lithium-ion battery, and Shimano 7-speed gearing. Designed for recreational cycling and outdoor exploration on suitable surfaces, the E-Go Max offers adjustable electric assistance, comfortable riding geometry and a compact folded design.

The E-Go Max features a manufacturer-listed 250W electric motor with assistance limited to 25km/h (15.5mph). Five selectable pedal-assist levels allow riders to adjust the amount of electrical support while pedalling. Additional operating options include walk-assist mode and conventional cycling without motor assistance.

A 36V 14Ah lithium-ion battery provides 504Wh of nominal energy capacity. The manufacturer identifies Samsung- or LG-branded battery cells and advertises a pedal-assisted range of up to 90km (approximately 56 miles), depending on operating conditions. Actual range varies with rider weight, terrain, assistance settings, temperature, tyre pressure and battery condition.

One of the E-Go Max's distinctive features is its battery placement inside the seat post. This integrated design allows the battery to be removed for separate charging or charged while fitted to the bicycle, following the manufacturer's instructions.

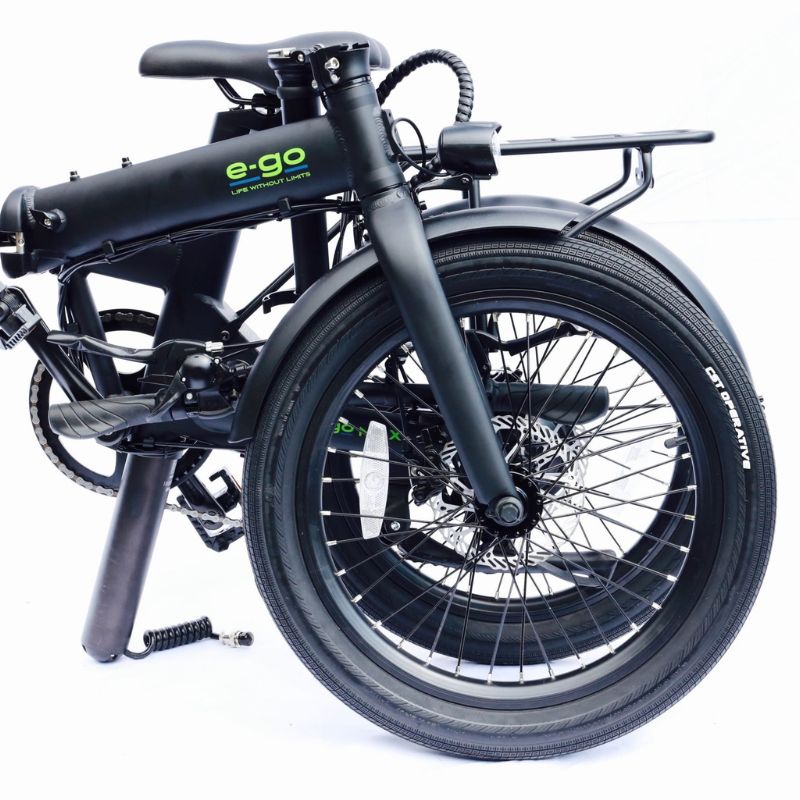

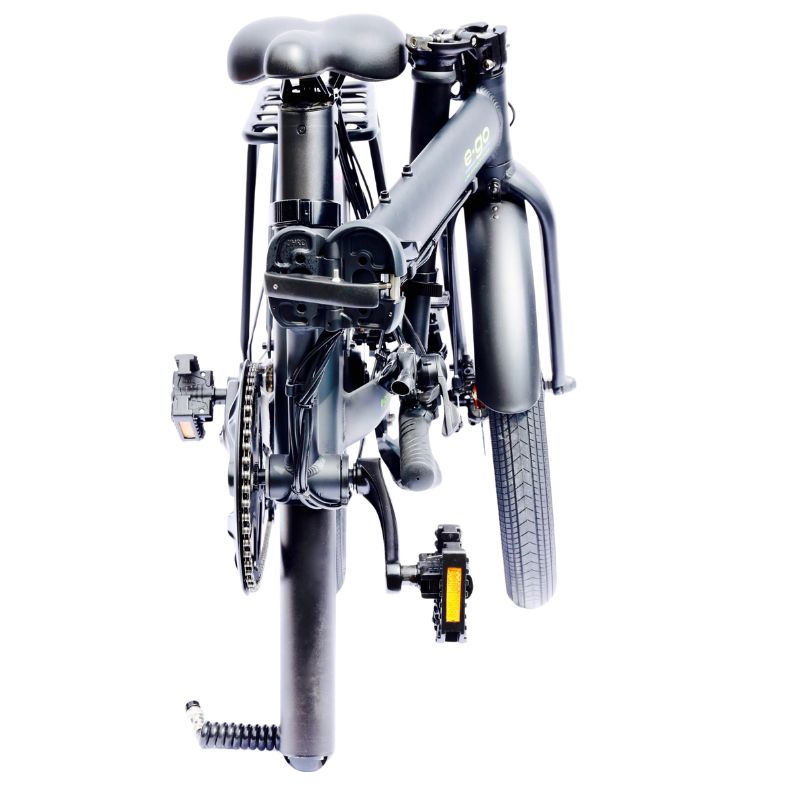

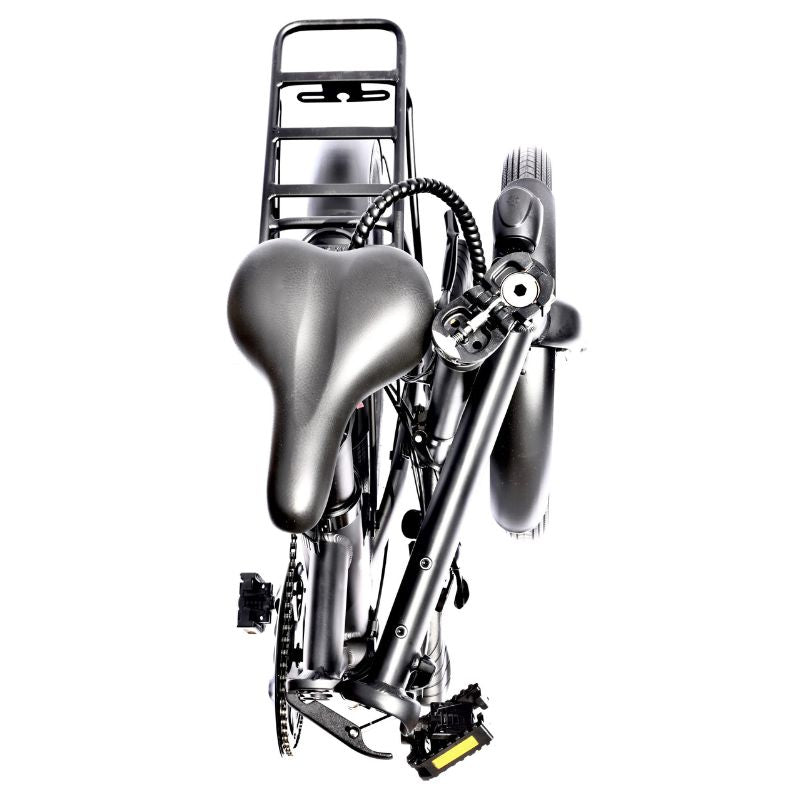

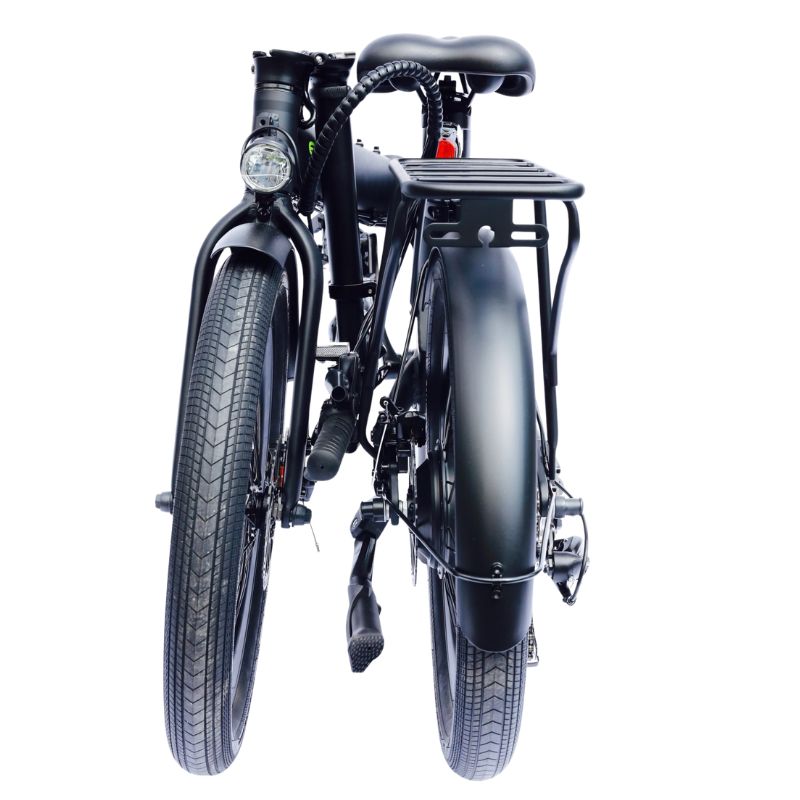

The folding frame can be collapsed in four steps, making the bicycle easier to store when not in use. Its adjustable saddle and handlebar stem help accommodate different rider preferences, while the 20-inch wheels and 2.35-inch tyres provide a practical balance of cushioning and manoeuvrability on suitable surfaces.

Shimano 7-speed gearing provides mechanical gear selection for varied gradients. Front and rear disc brakes offer controlled stopping performance when correctly adjusted and maintained. The manufacturer also includes front and rear mudguards, lighting, a kickstand, bell and reflector.

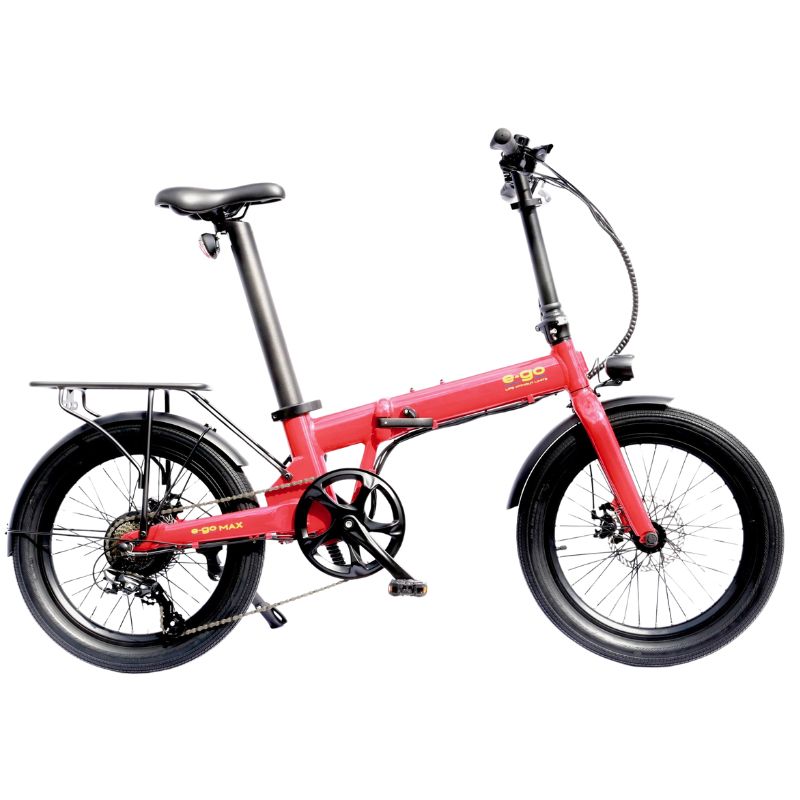

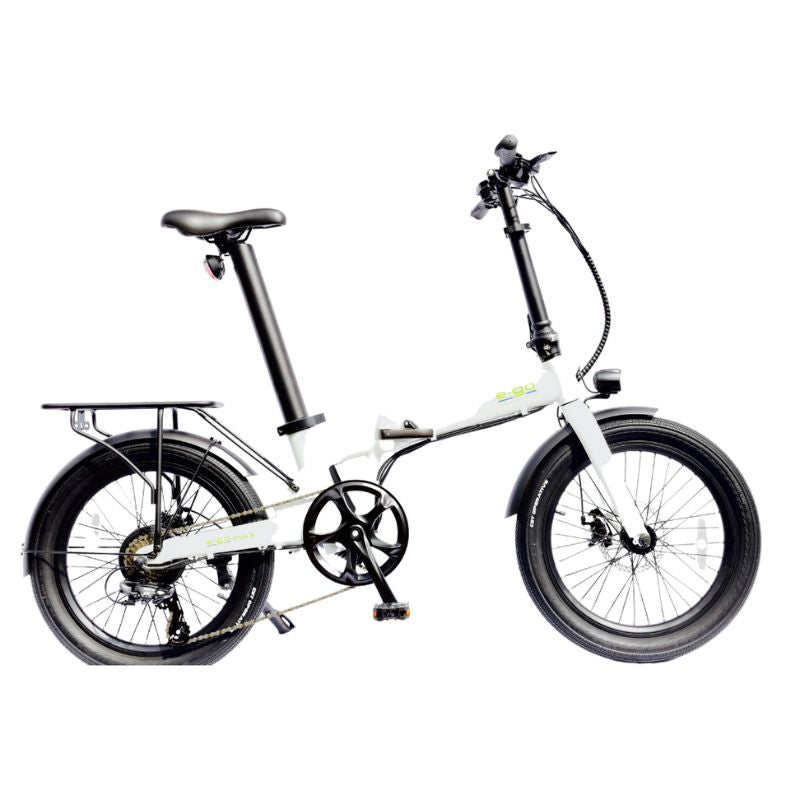

With a manufacturer-listed net weight of approximately 20kg, the E-Go Max is available in Satin Black, Gloss Red and Metallic White. The manufacturer lists a 130kg payload capacity on the product page and a 12-month guarantee, subject to its warranty terms.

UK EAPC Information: E-Go describes its standard Max configuration as a UK-compliant electrically assisted pedal bicycle with a 250W motor and assistance limited to 25km/h. The manufacturer also states that its folding bicycles comply with CE and EN 15194 requirements. Compliance applies to the correct, unmodified configuration and should be supported by documentation for the bicycle supplied.

Key Features

• 250W Electric Motor: Manufacturer-listed pedal-assist motor designed to provide electrical support while pedalling.
• UK EAPC Specification: Manufacturer-declared configuration with assistance limited to 25km/h (15.5mph).
• 36V 14Ah Lithium-Ion Battery: Removable battery providing 504Wh of nominal energy capacity.
• Samsung/LG Battery Cells: Manufacturer-listed branded lithium-ion battery construction.
• Up to 90km Claimed Range: Manufacturer-estimated assisted range under suitable operating conditions.
• Integrated Seat-Post Battery: Battery housed within the seat post for a discreet appearance.
• Removable Battery Design: Supports charging while installed or after removal.
• Four-Step Folding System: Folding frame design for more compact storage.
• Shimano 7-Speed Gearing: Mechanical gear selection for varied riding conditions.
• Five Pedal-Assist Levels: Adjustable electrical assistance.
• Three Operating Modes: Pedal assist, walk assist and conventional cycling without motor support.
• 20-Inch Wheels: Compact wheel configuration with 2.35-inch tyres.
• Front and Rear Disc Brakes: Controlled braking when properly maintained.
• Adjustable Saddle Height: Allows adjustment to suit rider preference.
• Adjustable Handlebar Stem: Supports riding-position adjustment.
• Approximately 20kg Net Weight: Manufacturer-listed bicycle weight.
• 130kg Advertised Payload: Product-page capacity; confirm the applicable limit for the supplied model.
• Front and Rear Mudguards: Included protective accessories.
• Front and Rear Lights: Included lighting equipment.
• Kickstand, Bell and Reflector: Practical included accessories.
• IP54 Rating: Manufacturer-listed resistance to limited dust ingress and water splashes.
• 12-Month Manufacturer Guarantee: Subject to the manufacturer's published terms.
• Three Colour Options: Satin Black, Gloss Red and Metallic White, subject to availability.

Technical Specifications

Why Choose This Product

• Compact Folding Design: The four-step folding mechanism allows the bicycle to occupy less space when stored.
• Integrated Seat-Post Battery: The removable battery is incorporated into the seat post, maintaining a discreet overall design.
• 504Wh Battery Capacity: The manufacturer advertises a pedal-assisted range of up to 90km under suitable conditions.
• Adjustable Electric Assistance: Five pedal-assist levels allow riders to choose their preferred level of motor support.
• Shimano 7-Speed Drivetrain: Seven mechanical gears provide flexibility across different gradients.
• 20-Inch Wheels: The 2.35-inch tyres provide a practical combination of cushioning and handling on appropriate surfaces.
• Front and Rear Disc Brakes: Braking equipment designed to provide controlled stopping when correctly maintained.
• Adjustable Riding Position: Saddle and handlebar stem adjustments accommodate different rider preferences.
• Useful Included Accessories: Mudguards, lights, kickstand, bell and reflector are listed as standard equipment.
• Approximately 20kg Net Weight: Manufacturer-listed weight for the standard E-Go Max.
• UK Manufacturer Support: E-Go advertises replacement parts availability and a 12-month guarantee, subject to terms.

FAQ

What motor does the E-Go Max use?
The manufacturer lists a 250W electric motor with pedal assistance limited to 25km/h (15.5mph).

Is the E-Go Max UK EAPC compliant?
E-Go states that its standard folding electric bicycles comply with UK EAPC requirements. The Max is advertised with a 250W motor and a 25km/h assistance limit. Compliance should be verified for the exact unmodified bicycle supplied, including maximum continuous rated power and all applicable requirements.

What battery does the E-Go Max use?
It uses a removable 14Ah lithium-ion battery with 504Wh nominal energy capacity. The manufacturer lists Samsung or LG branded cells.

Where is the battery located?
The battery is integrated within the seat post, giving the bicycle a discreet appearance.

Can the battery be removed for charging?
Yes. The battery can be removed for separate charging or charged while fitted to the bicycle, following the manufacturer's instructions.

What is the claimed assisted range?
The manufacturer advertises up to 90km, approximately 56 miles, depending on conditions. Actual range varies with rider weight, terrain, assistance level, temperature and battery condition.

Does the E-Go Max fold?
Yes. The bicycle uses a four-step folding mechanism designed to reduce its size for storage.

What are the folded dimensions?
The main product page lists approximately 83 x 48 x 72cm. Another manufacturer information page lists different dimensions, so the exact measurements should be confirmed before relying on them for a particular storage space.

How much does the bicycle weigh?
The manufacturer lists a net weight of approximately 20kg.

What is the maximum rider and equipment load?
The main product page advertises a 130kg payload. The manufacturer's general FAQ gives a different figure, so the applicable maximum should be confirmed for the supplied model.

How many gears does the E-Go Max have?
It features Shimano 7-speed mechanical gearing.

How many assistance levels are available?
The bicycle offers five selectable pedal-assist levels.

What operating modes are available?
The manufacturer lists pedal-assist mode, walk-assist mode and conventional cycling without motor assistance.

Can the bicycle be used without electric assistance?
Yes. The E-Go Max includes a conventional cycling mode that allows pedalling without motor support.

What size are the wheels and tyres?
The bicycle features 20-inch wheels fitted with 2.35-inch-wide tyres.

Does the E-Go Max have disc brakes?
Yes. The manufacturer specifies front and rear disc brakes.

Is the saddle adjustable?
Yes. The seat-post height can be adjusted to suit the rider.

Can the handlebar height be adjusted?
Yes. The bicycle features an adjustable handlebar stem.

Does the bicycle include mudguards?
Yes. Front and rear mudguards are included as standard.

Does it include lights?
Yes. The manufacturer lists front and rear lights as included equipment.

Is a rear rack included?
No. The manufacturer states that the rear rack shown in some product photographs is not included in the standard price.

Does the E-Go Max include a kickstand?
Yes. A kickstand is listed among the included accessories.

Is the bicycle waterproof?
E-Go lists an IP54 protection rating. This indicates resistance to limited dust ingress and water splashes under specified conditions, but does not make the bicycle suitable for submersion or pressure washing.

What colours are available?
The manufacturer lists Satin Black, Gloss Red and Metallic White, subject to stock availability.

What warranty is included?
E-Go advertises a 12-month guarantee covering qualifying manufacturing and material defects, subject to the manufacturer's published warranty terms.

What comes in the box?
The manufacturer lists front and rear mudguards, a kickstand, battery, charger, front and rear lights and a tool bag. The product description also lists a bell and reflector. Promotional accessories should be confirmed separately.

What standards does the manufacturer claim?
E-Go states that its folding electric bicycles are CE compliant and have been tested against EN 15194 and EN 14764. Documentation should be checked for the exact model and production version supplied.

Off-Road Compliance Notice

UK EAPC Classification: The standard E-Go Max is advertised as a 250W electrically assisted pedal bicycle with motor assistance limited to 25km/h (15.5mph). E-Go states that its standard folding electric bicycles comply with applicable UK EAPC requirements.

To qualify as an Electrically Assisted Pedal Cycle under UK requirements, a bicycle must have functioning pedals, maximum continuous rated motor power not exceeding 250W, electric assistance that cuts off at 25km/h, and must satisfy all other applicable conditions.

Standard Configuration: The manufacturer's EAPC declaration relates to the intended, unmodified bicycle configuration. The motor rating, assistance restriction, electrical components and any fitted throttle functionality must remain consistent with the applicable requirements.

Higher-Power Modifications: Any modification that increases maximum continuous rated motor output above 250W, changes the assistance-speed restriction or otherwise causes the bicycle to fail EAPC requirements may alter its legal classification.

Private Land Use Where Required: A non-EAPC configuration must not be assumed to be legally permitted on public roads or other publicly accessible areas. Additional approval, registration, insurance, licensing or other requirements may apply. Otherwise, operation should be restricted to suitable private land with the landowner's permission or other locations where that configuration is legally authorised.

Recreational Access: A compliant EAPC may be used where cycling is legally permitted, subject to local restrictions. Always follow land access rules, manufacturer instructions and recommended cycling safety precautions.
