AMCargo Bikes Curve 250W Cargo Electric Tricycle | EAPC Specification

The AMCargoBikes Curve Dog Friendly Cargo Electric Tricycle is a practical three-wheel electric cycle designed with a spacious front cargo box, a hinged front opening and a stable tadpole-style configuration. The updated front-opening design provides convenient access to the cargo area and is particularly suitable for carrying dogs, children and other suitable loads.

The Curve combines a 250W brushless rear hub motor with a 36V 13Ah lithium-ion battery and a pedal-assist system with six selectable power levels. The manufacturer states a maximum assisted speed of 25 km/h and a range of up to 40 miles, depending on rider weight, terrain, conditions, and selected assistance level.

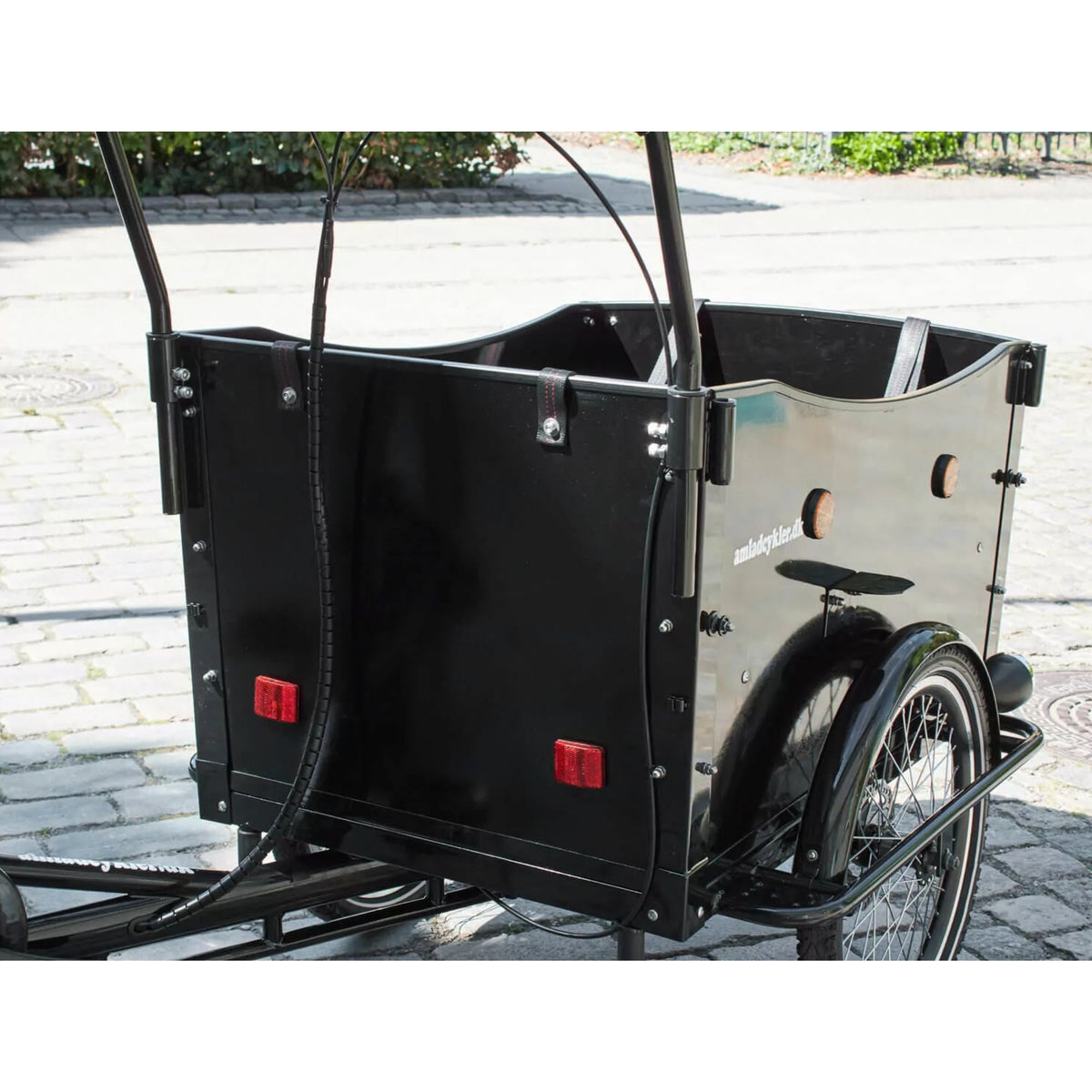

The cargo box includes an anti-slip treated floor, child bench and safety belt system. A luggage rack with securing straps provides additional carrying space, while the patented Anti-Tilt steering system is designed to help provide controlled and stable handling.

Finished in black, the Curve features Tektro hydraulic disc brakes, Shimano 6-speed gearing, puncture-resistant Kenda tyres and integrated LED lighting.

Key Features

• 250W brushless rear hub motor with a maximum assisted speed of 25 km/h.
• 36V 13Ah lithium-ion battery with 468Wh capacity.

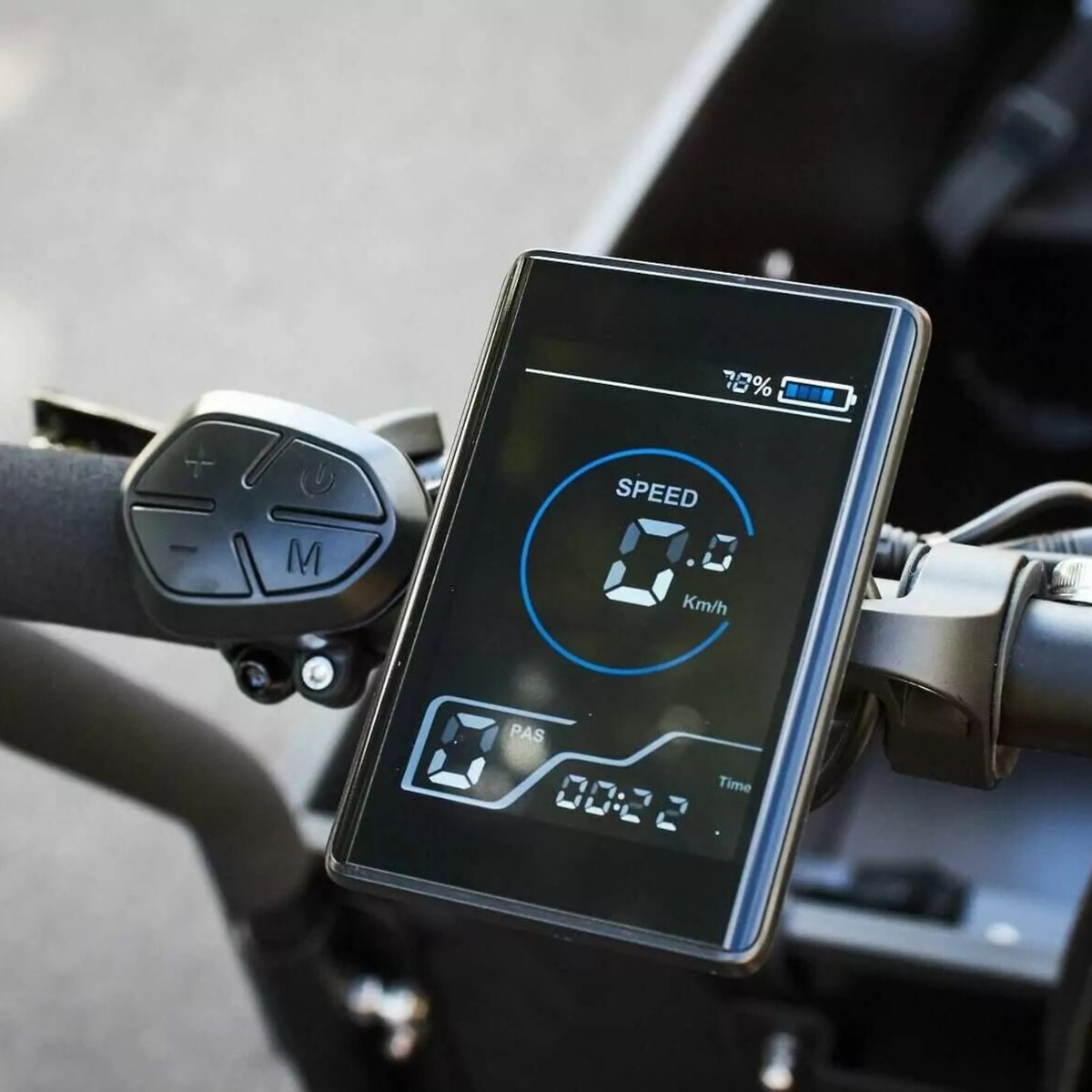

• Six power-assistance levels selectable through the handlebar-mounted LCD display.

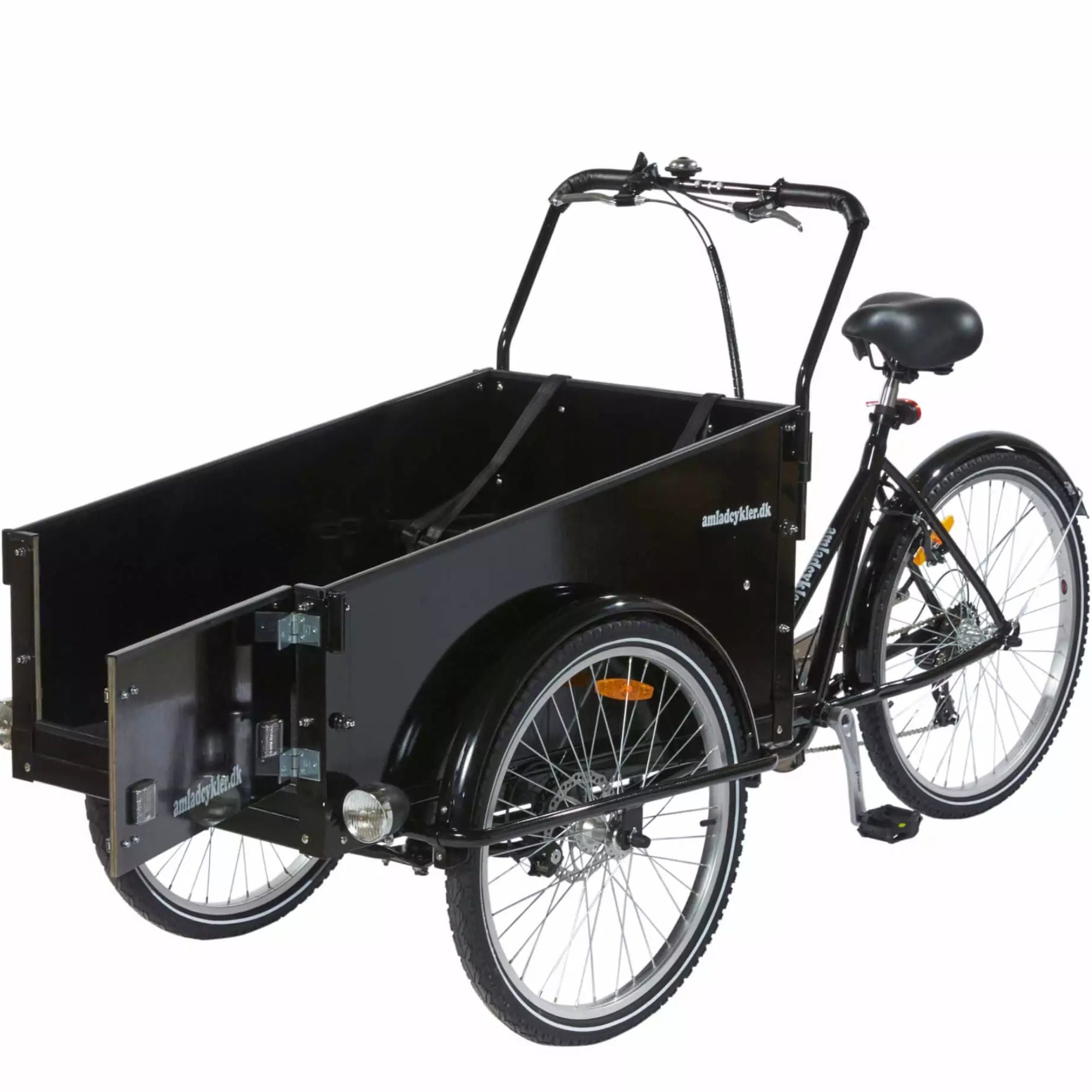

• Front-opening cargo box with hinged drop-door for easier loading and access.
• Dog-friendly cargo configuration with a practical open-access design.
• Child bench and safety belt system within the cargo box.
• Anti-slip cargo floor for added stability of suitable loads.
• Patented Anti-Tilt steering system with self-straightening adjustment function.

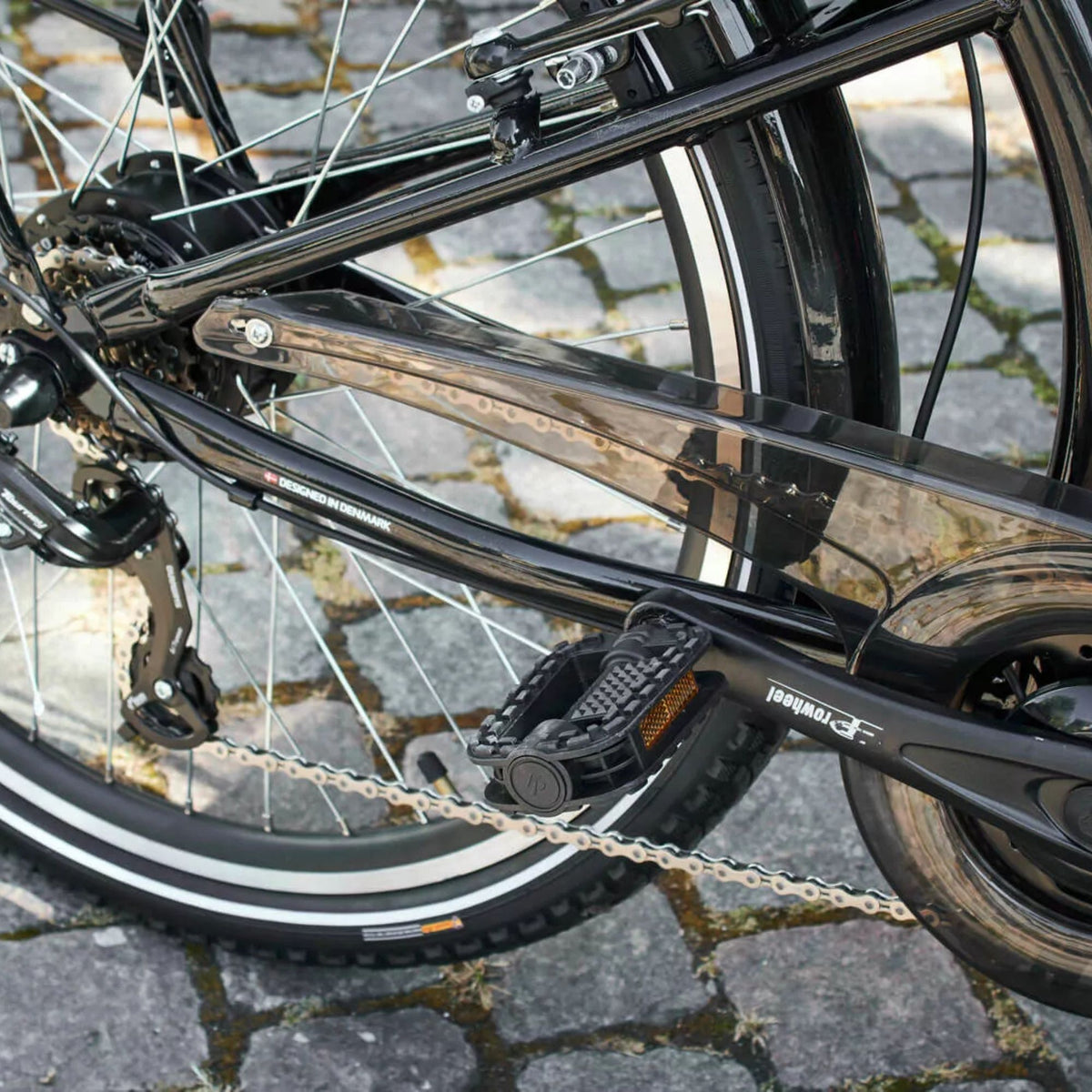

• Shimano 6-speed Tourney SIS gearing with freewheel and Shimano gear shifter.
• Tektro hydraulic disc brakes at the front and rear, with electric braking and parking brake.
• Kenda puncture-resistant tyres with 20-inch front and 26-inch rear wheels.
• Integrated LED lighting with two front headlights and a rear light.
• 150 kg maximum loading capacity according to the supplied specification.
• Rear luggage rack with straps for additional carrying capacity.
• Adjustable handlebar and ergonomic grips for rider comfort.

Technical Specifications

*Actual battery range varies according to rider and load weight, terrain, conditions, tyre pressure and selected pedal-assistance level.

Why Choose This Product

• Purpose-built cargo design: The large front cargo box provides dedicated space for suitable loads.
• Front-opening access: The hinged drop-door makes loading and unloading easier.
• Pet-friendly configuration: The cargo area is designed with features that can accommodate suitable dogs when used safely.
• Family-friendly equipment: The cargo box includes a bench and safety belt system for suitable child-carrying use.
• Controlled handling: The Anti-Tilt steering system is designed to assist with smooth and stable steering.
• Strong braking system: Tektro hydraulic brakes provide braking control at the front and rear.
• Useful battery capacity: The 36V 13Ah battery provides 468Wh of stored energy.
• Practical accessories: The Curve includes lighting, fenders, chain cover, bell, reflectors, luggage rack and securing straps.

FAQ

What motor does the AMCargoBikes Curve use?

The Curve uses a 250W brushless rear hub motor with a manufacturer-stated maximum assisted speed of 25 km/h.

What battery does the Curve use?

It uses a 36V 13Ah lithium-ion battery with a total capacity of 468Wh.

What range does the battery provide?

The manufacturer lists a range of up to 40 miles. Actual range depends on factors including rider and load weight, terrain, conditions, and selected assistance level.

How many assistance levels does the Curve have?

The Curve has six selectable power-assistance levels controlled through the digital LCD display.

Does it have a walking mode?

Yes. The electronic walking mode operates at up to 5 km/h according to the supplied product specification.

What gears does it have?

The Curve uses a Shimano Tourney SIS 6-speed gearing system with a Shimano gear shifter.

What brakes are fitted?

The tricycle uses Tektro hydraulic disc brakes at the front and rear, together with an electric braking system and parking brake.

What are the wheel sizes?

The front wheel uses a 20-inch Kenda puncture-resistant tyre, while the rear wheel uses a 26-inch Kenda puncture-resistant tyre.

What is the maximum loading capacity?

The published specification lists a maximum loading capacity of 150 kg. This should include the applicable rider and cargo load as specified by the manufacturer.

What are the cargo box dimensions?

The cargo box measures approximately 91 cm × 59 cm (length × width).

Does the cargo box have a front opening?

Yes. This updated model features a hinged front drop-door designed to provide easier access to the cargo area.

Is the Curve suitable for carrying dogs?

The model is specifically designed with a dog-friendly cargo configuration. Any animal should be secured appropriately, and the total permitted loading capacity must not be exceeded.

Is the Curve suitable for carrying children?

The cargo box includes a child bench and safety belt system. Children should only be carried in accordance with the manufacturer's instructions and applicable safety requirements.

Is this model EAPC specification?

The published specifications state a 250W motor and maximum assisted speed of 25 km/h, which correspond with key UK EAPC power and assistance-speed thresholds. However, EAPC classification depends on the complete vehicle configuration and all applicable UK requirements. Confirm the specific UK-market specification and required markings before public-road use.

How is the tricycle supplied?

The supplied information states that the tricycle is delivered assembled, with only the pedals requiring attachment and the handlebar requiring straightening.

Off-road Compliance Notice

This model is specified with a 250W motor and a maximum assisted speed of 25 km/h. Therefore, the over-250W off-road notice is not applicable to the published specification of this model.

The stated power and assisted-speed specifications correspond with key UK EAPC thresholds. However, these specifications alone do not establish legal classification. The specific vehicle must meet all applicable requirements for an EAPC, including pedal functionality, construction, required markings and any other applicable UK requirements.

Do not modify the motor, controller, speed settings, or electrical system to increase the rated power or assisted speed. Modifications may change the vehicle's legal classification and affect where it may legally be used.
